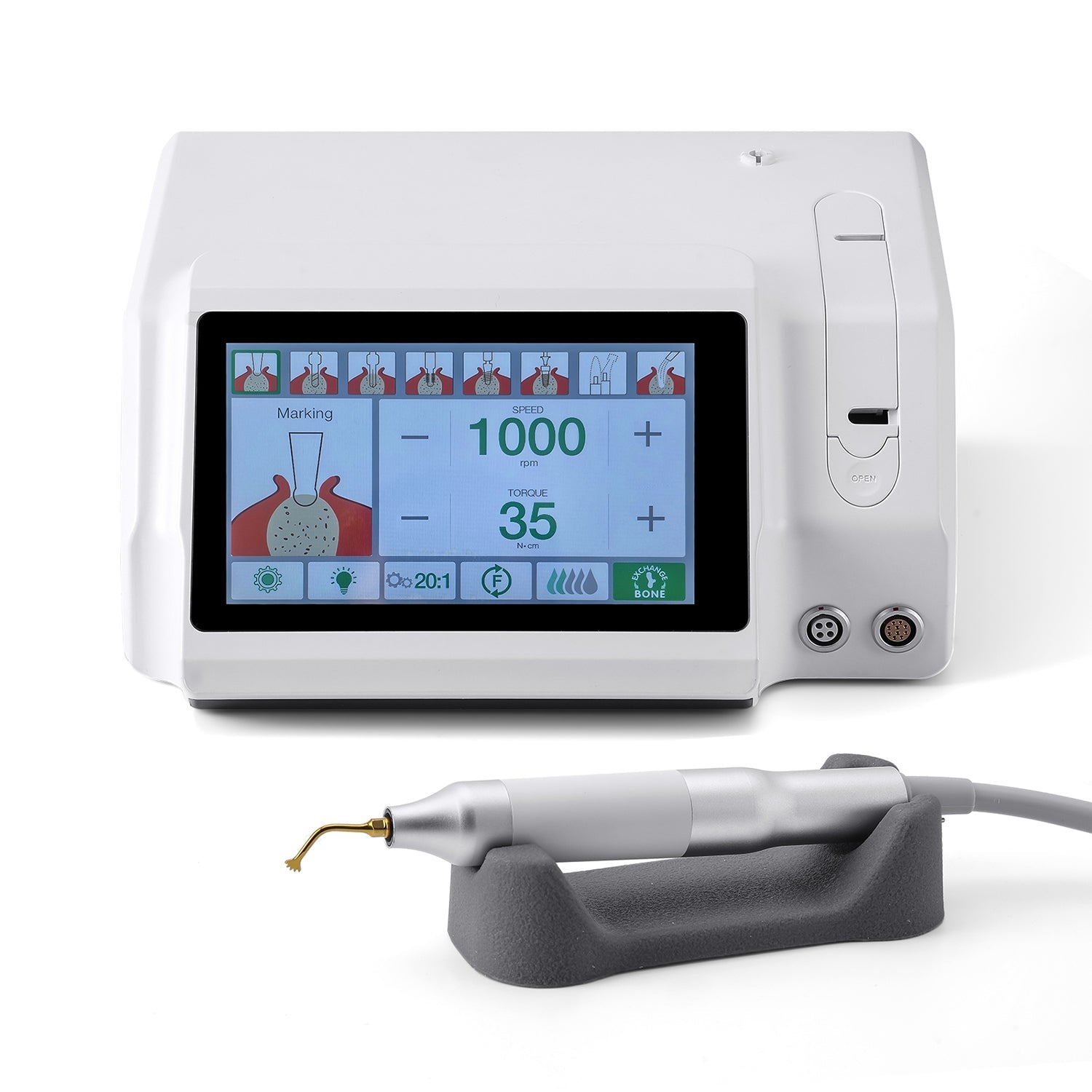

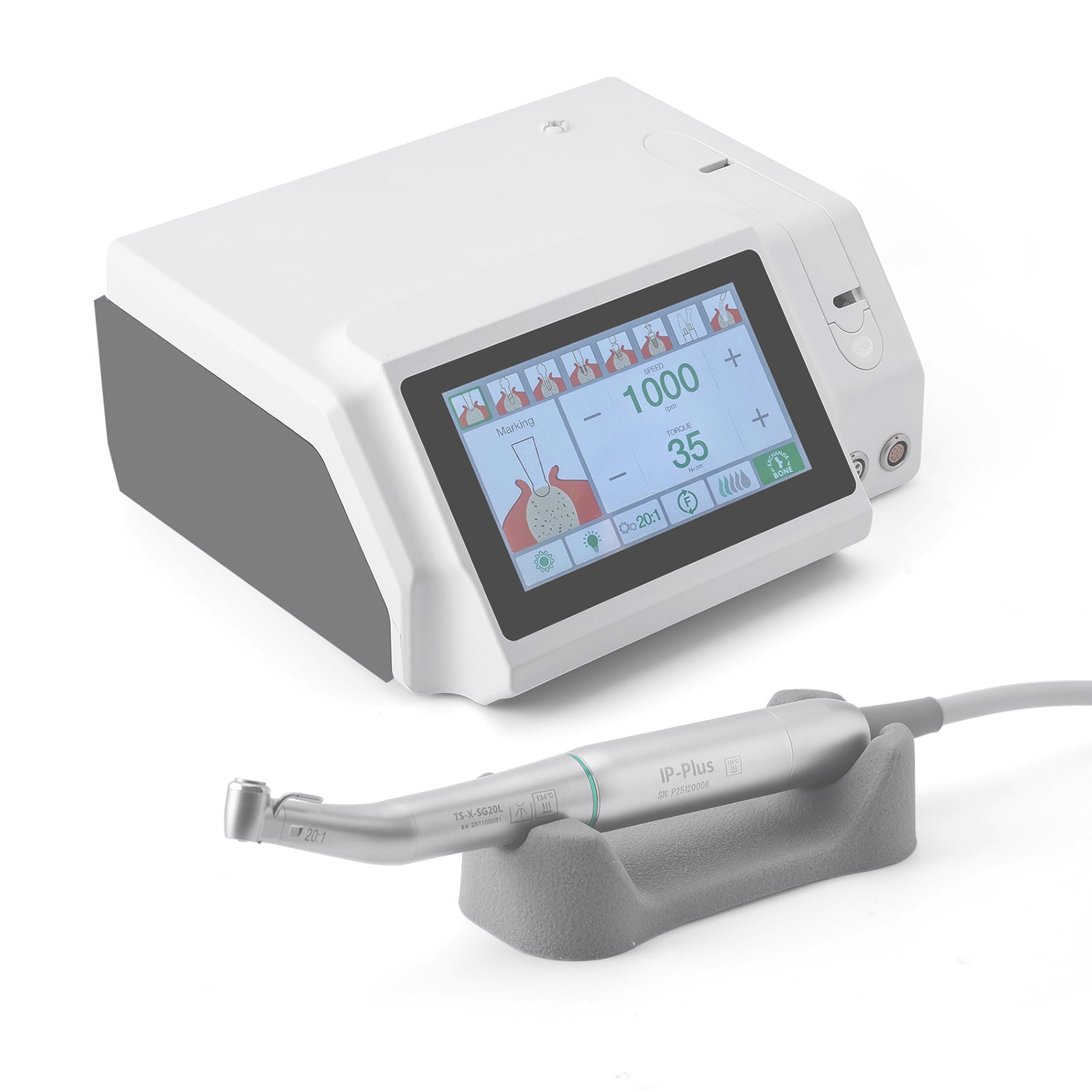

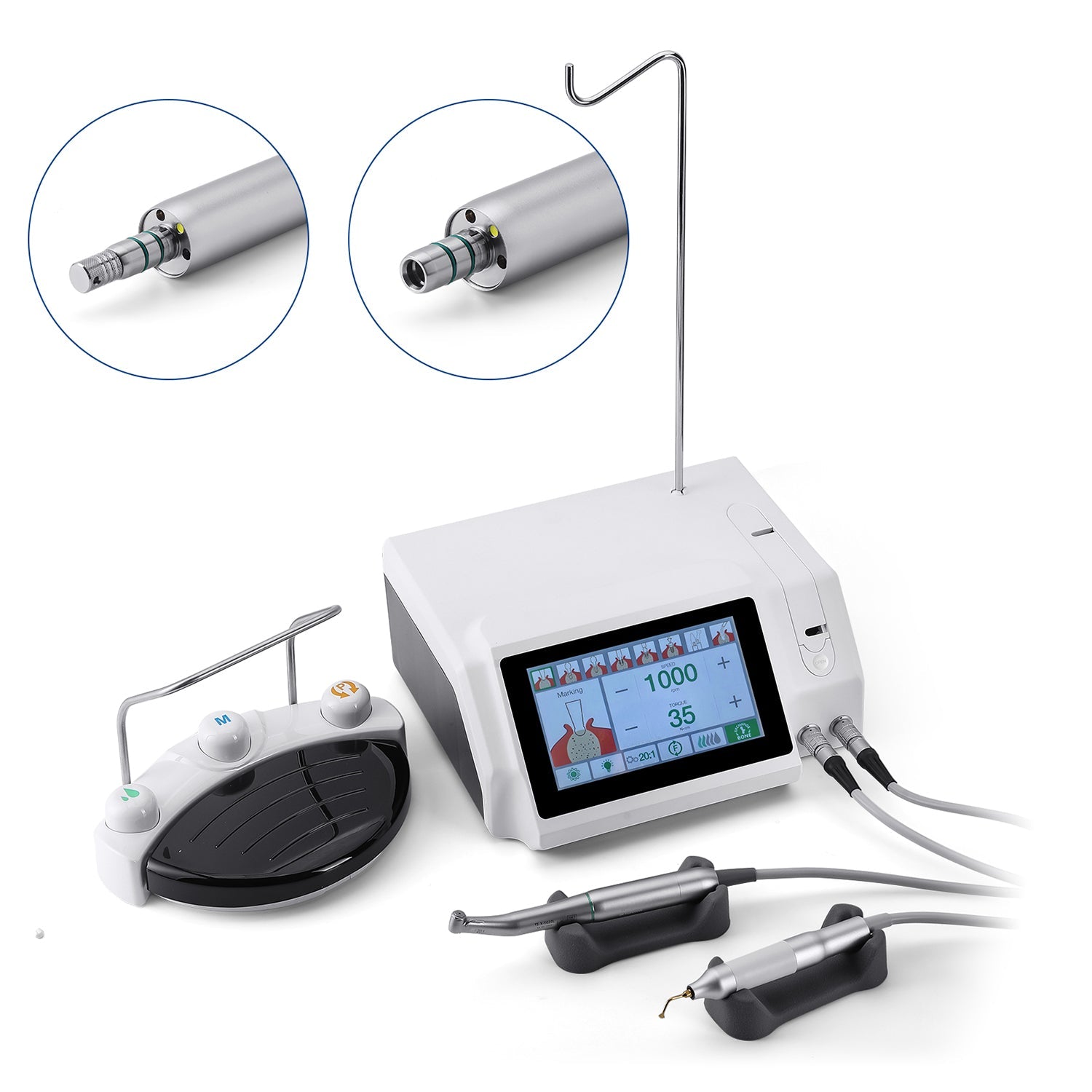

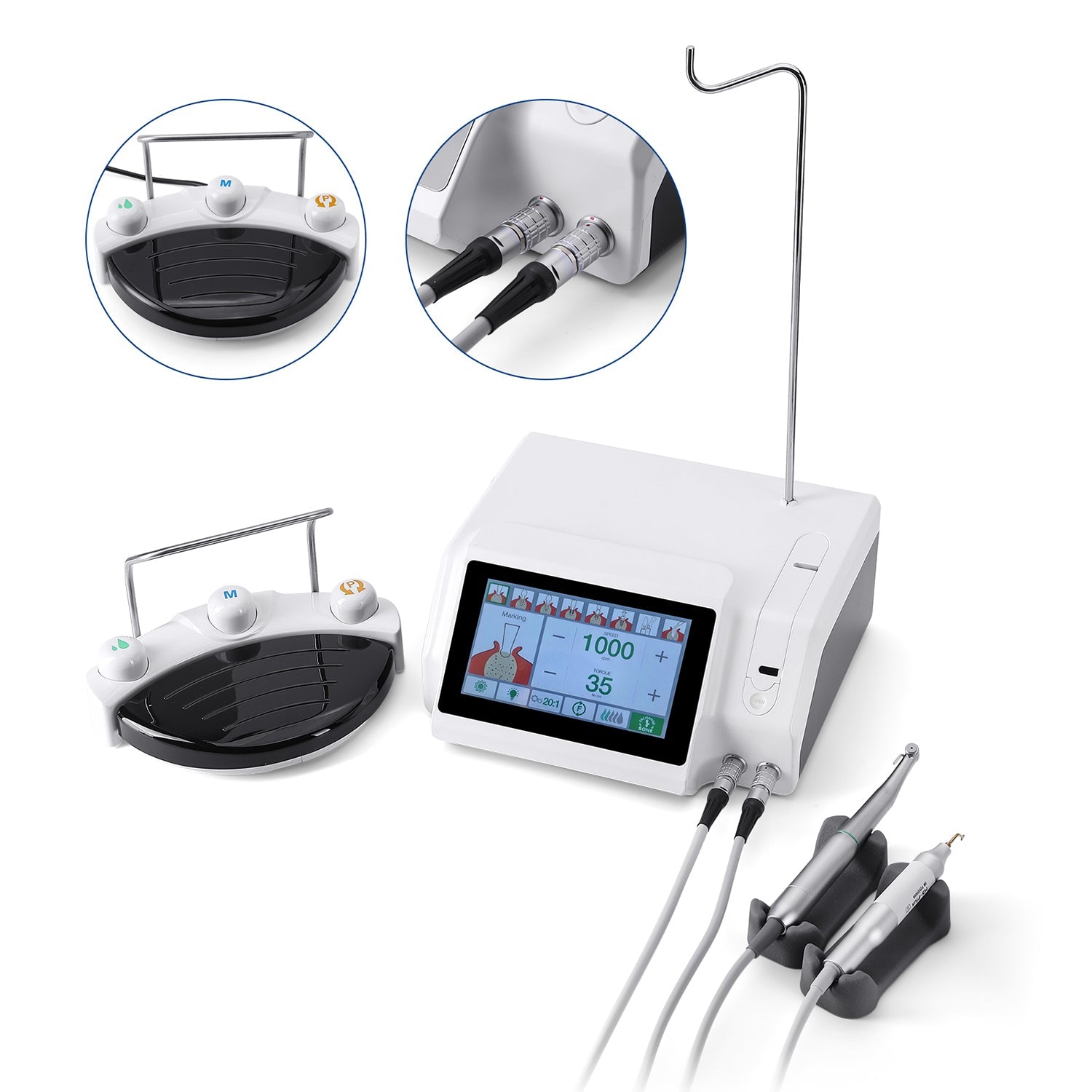

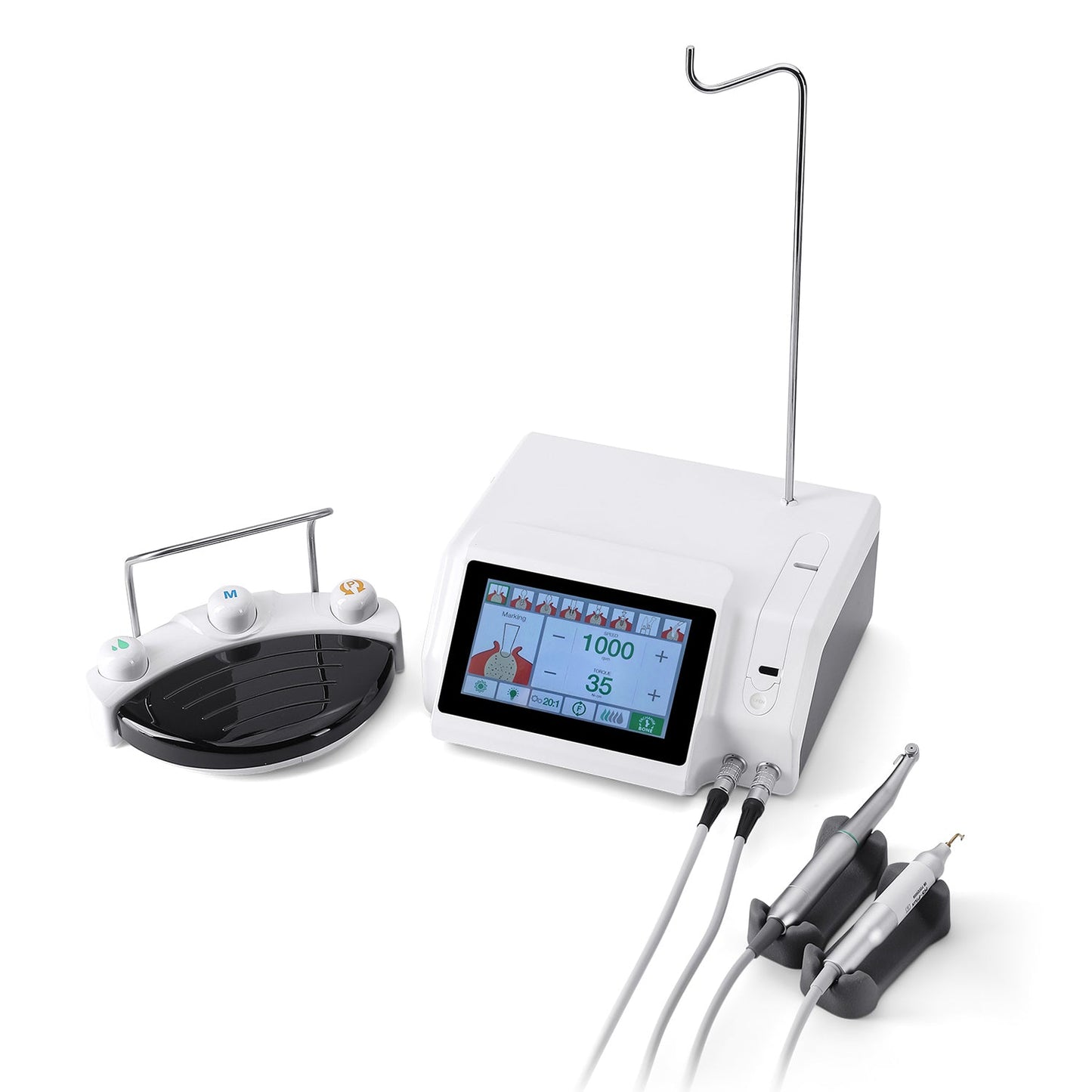

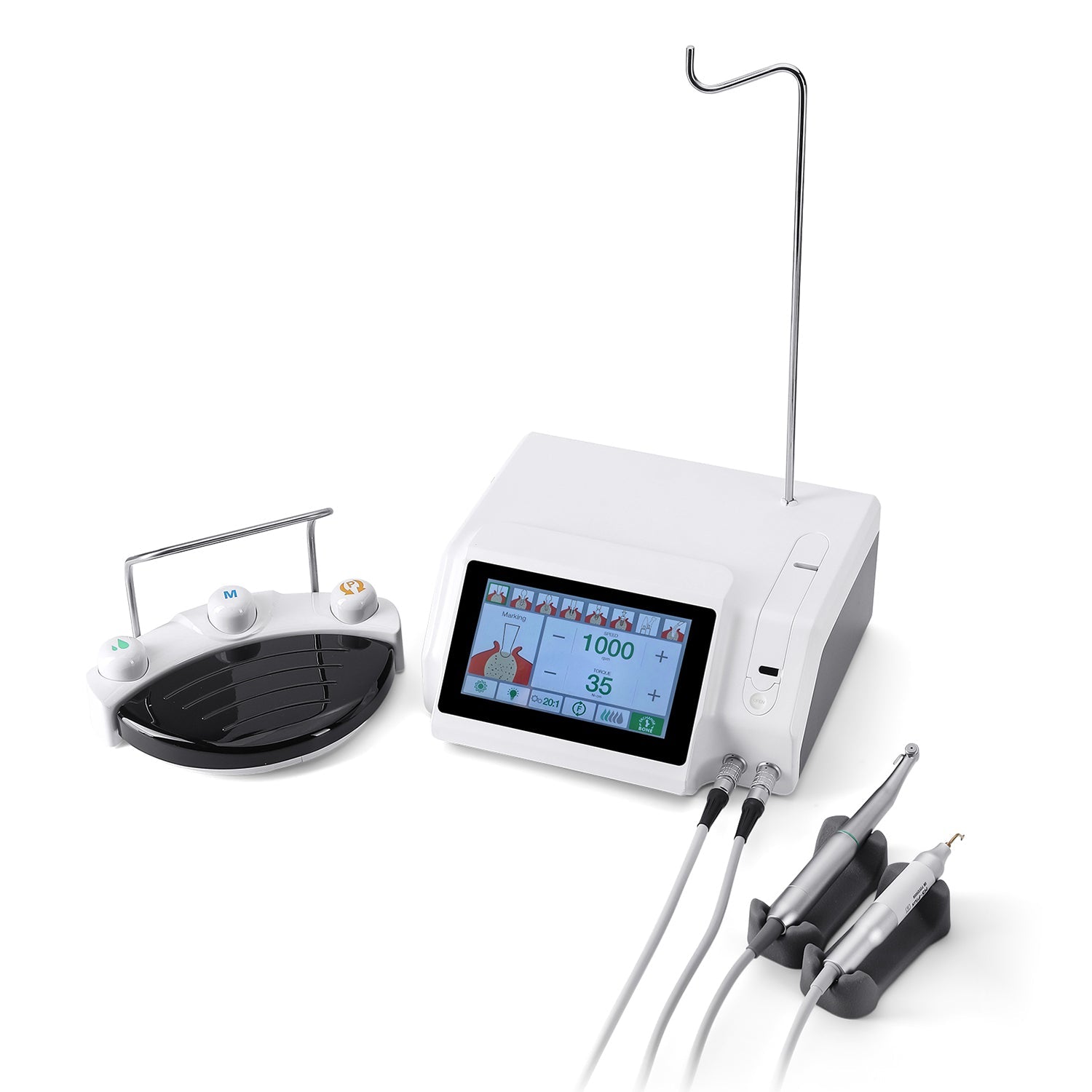

Dental 2 IN 1 Surgical Implant Motor Unit & Ultrasonic Bone Surgery with Two Handles and 20:1 LED Contra Angle. Multi-functional integration. Combines dental implant placement, low-power dental restoration, and ultrasonic bone cutting for minimally invasive dental surgery. 7-inch true-colour TFT capacitive touchscreen with a visualised interface and ergonomic touch design. Artificial intelligence foot control algorithm ensures smooth motor speed and ultrasonic start/stop control. Implant and micro-motor handpieces employ next-generation high-efficiency, low-noise, high-torque brushless DC motors. Incorporates an integrated peristaltic pump. All implant, micro-power, and ultrasonic transducer handpieces incorporate high-brightness self-illuminating LEDs with multi-level brightness adjustment.
Product manual download
| Overview |
|
| Technical Specifications |
| Model: | IMPLANT surg Plus |

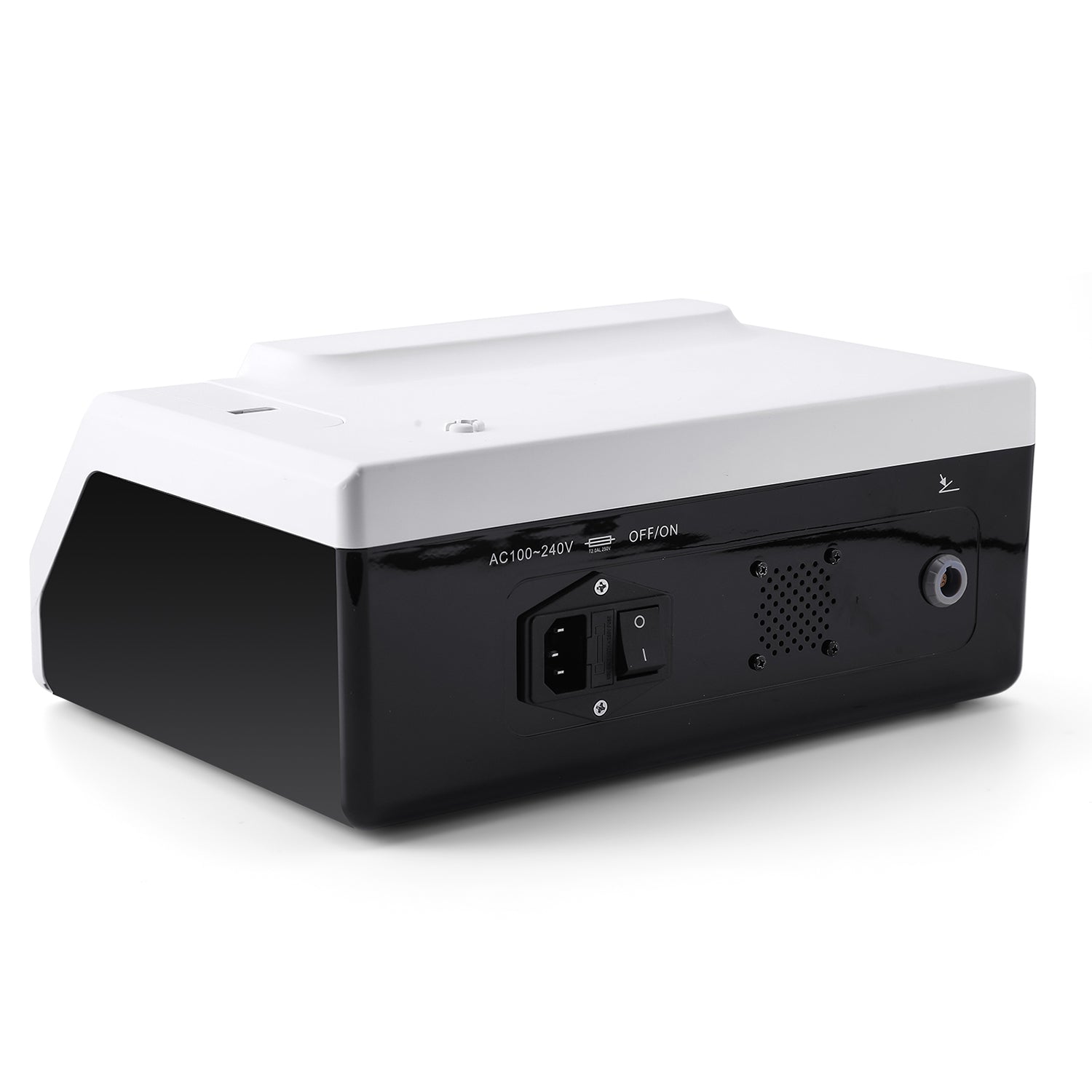

| Host specifications: | Power supply voltage：AC 100-240V Power supply frequency: 50/60Hz Input power: 150VA Dimension：286mm×252mm×113mm Weight：4.35Kg |
| Dental ultrasonic handpiece: | Dimension: ∅ 21.5mm×110mm Tail cord length：1.8m |
| Motor specifications: | Rotating speed range: 200~40000rpm Torque range：5-80N·cm (Speed ratio：20:1) Input voltage：DC30V Dimension: ∅ 21.5mm×105mm Tail cord length：1.8m |

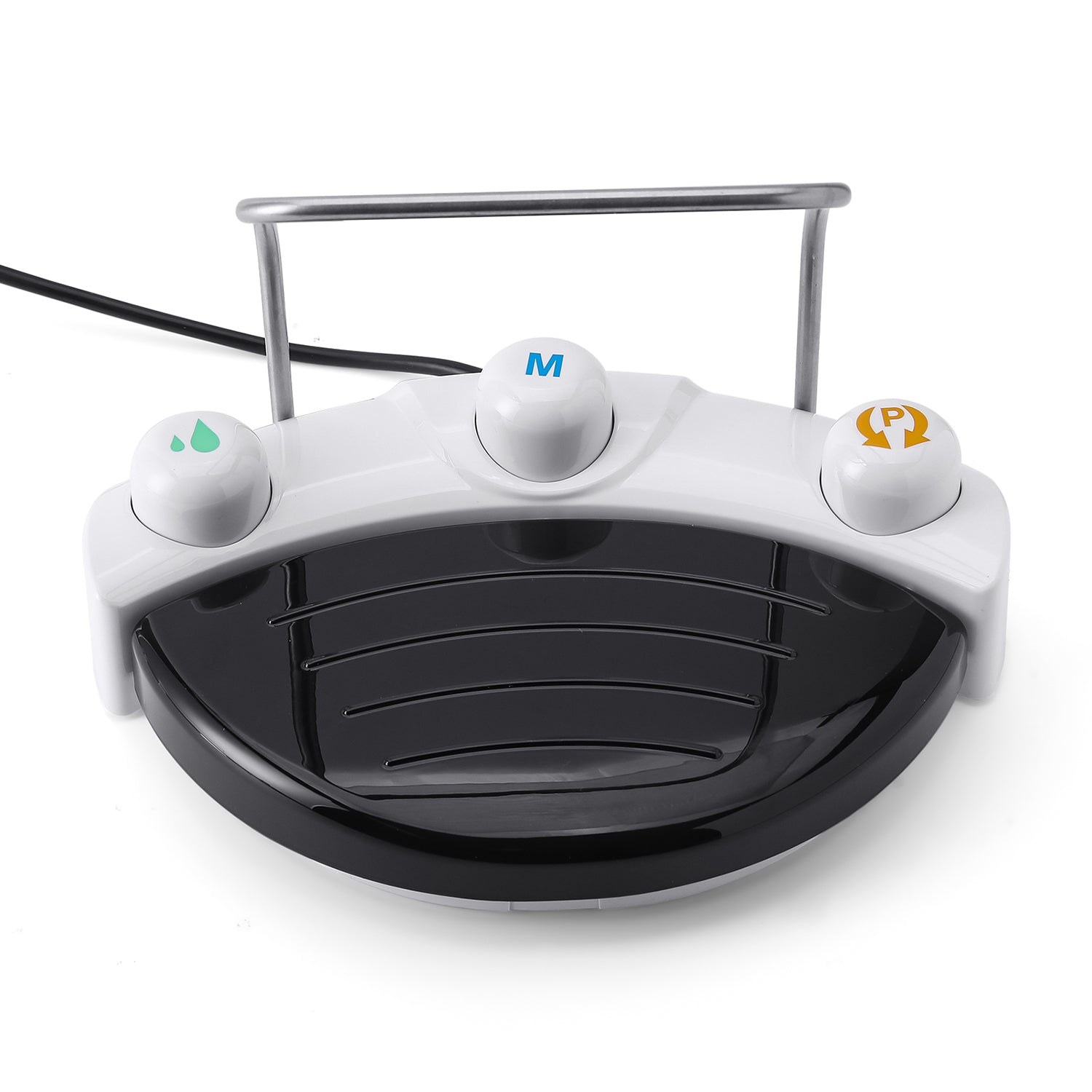

| Foot pedal controller specifications: | Tail cord length：2.0m |
| Ultrasonic working frequency: | 24kHz~36kHz |
| Flow: | 30~110ml/min |
| Operation environment: | a) Environment temperature: 0°C~+40°C b) Relative humidity: 30%~75% c) Atmosphere pressure: 70kPa~106kPa d) Temperature in the water inlet of water-cooling equipment is not higher than 25°C |
| Intermittent operation equipment: | Device for ultrasonic intermittent operation: 60s ON, 10s OFF |

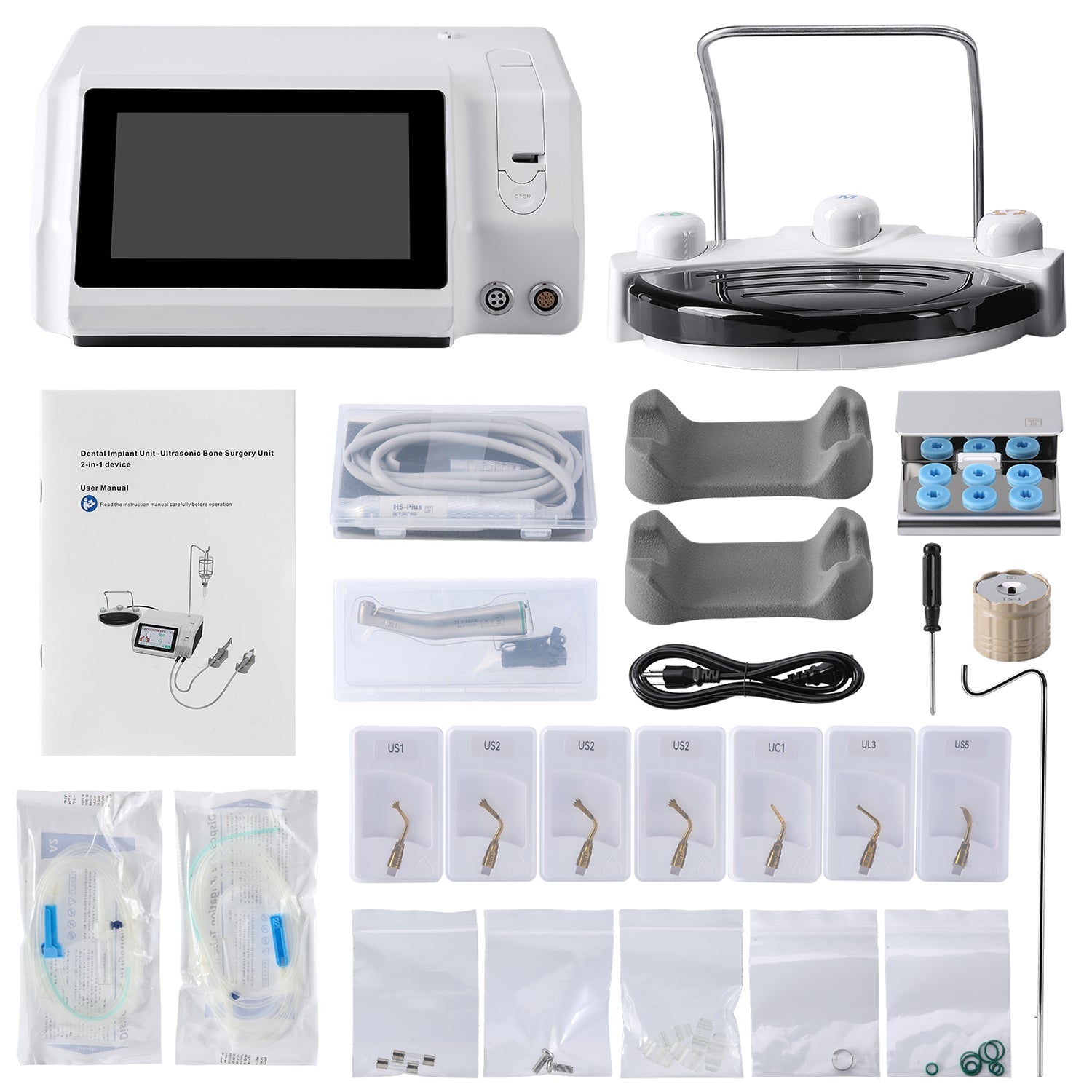

| Package |
| Implant unit: | 1pc |
| Foot pedal: | 1pc |
| Piezosurgery handle: | 1pc |

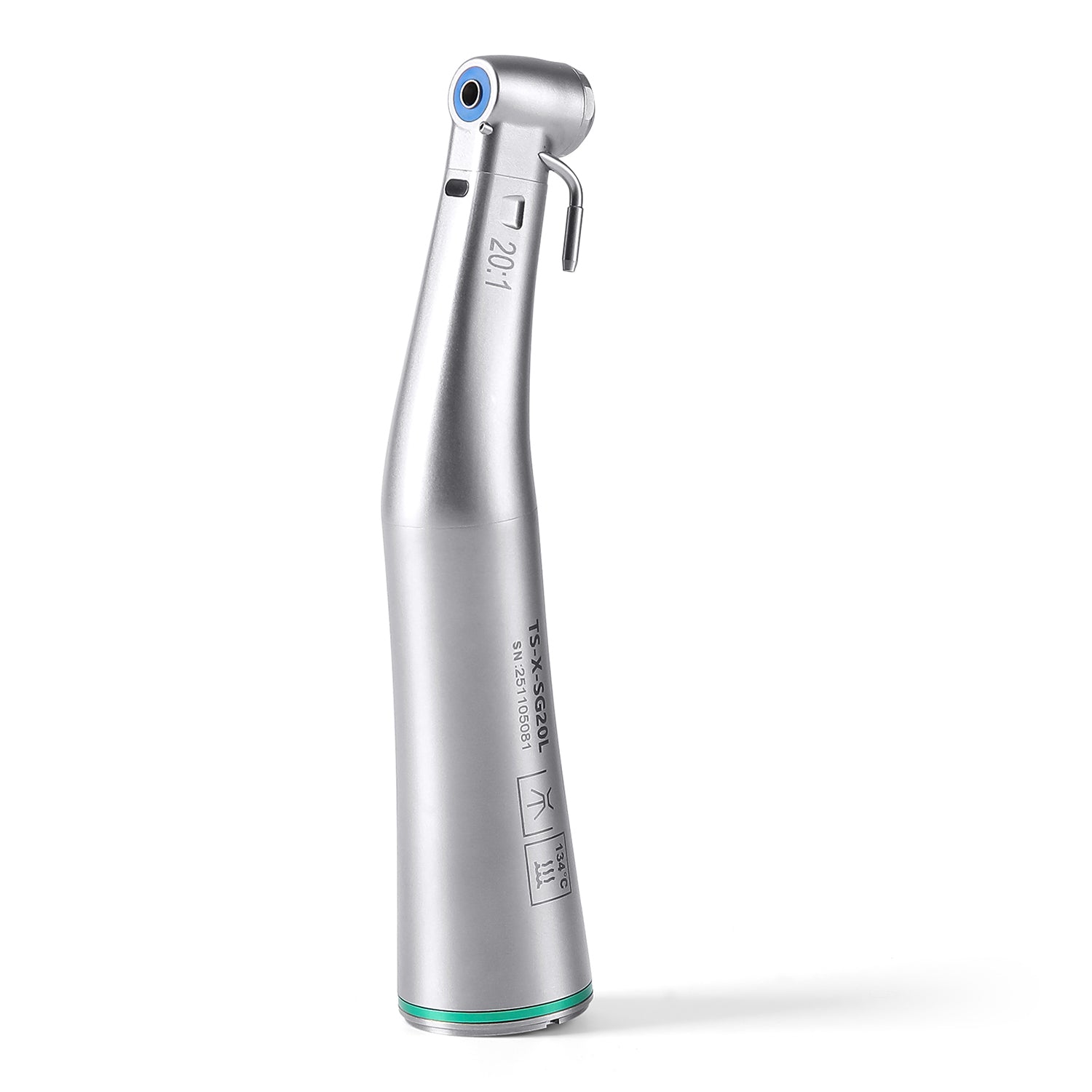

| 20:1 contra angle (with LED): | 1pc |
| Tips: | 7pcs |
| Piezosurgery wrench: | 1pc |
| Silicone base: | 2pcs |
| Saline water tube: | 2pcs |
| Power line: | 1pc |
