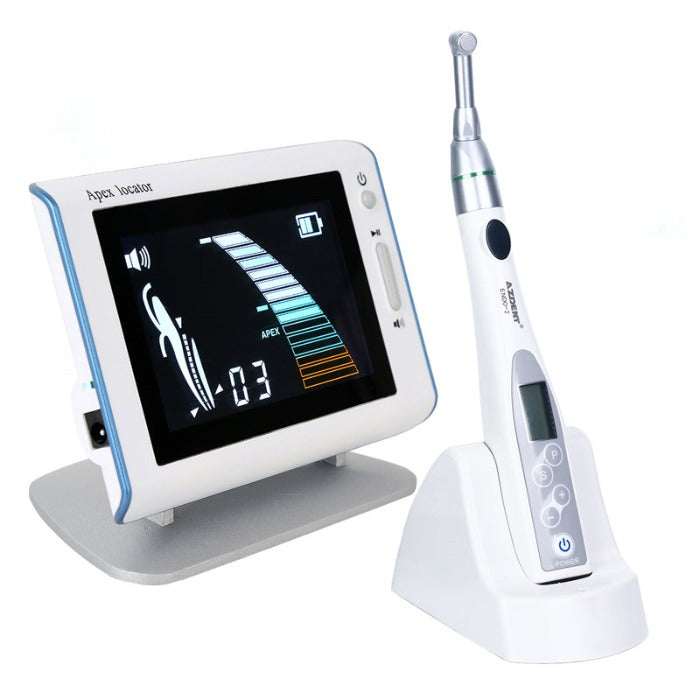

Dental Apex Locator and Mini Cordless Endo Motor ENDO-2 Kit. Clear bright 4.5" LCD Screen. Cordless 16:1 Electric Contra Angle Handpiece. Auto-reverse mode. 9 Program Settings.

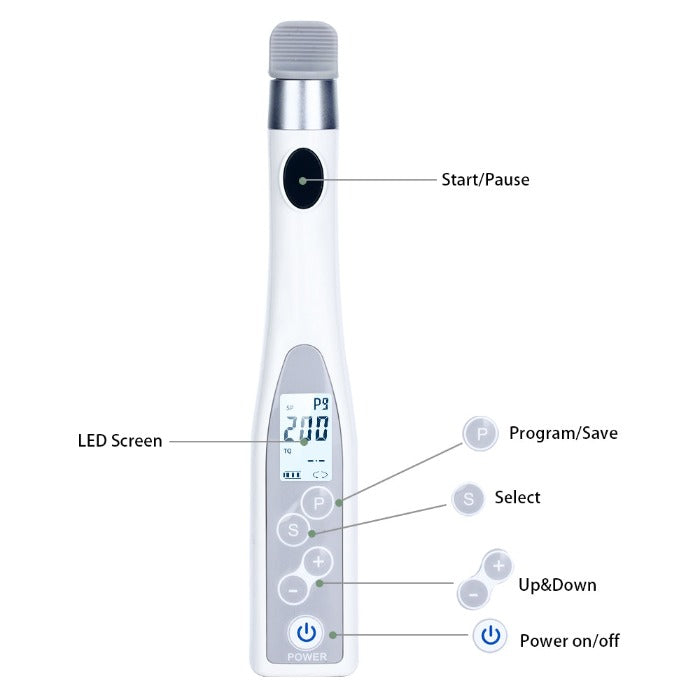

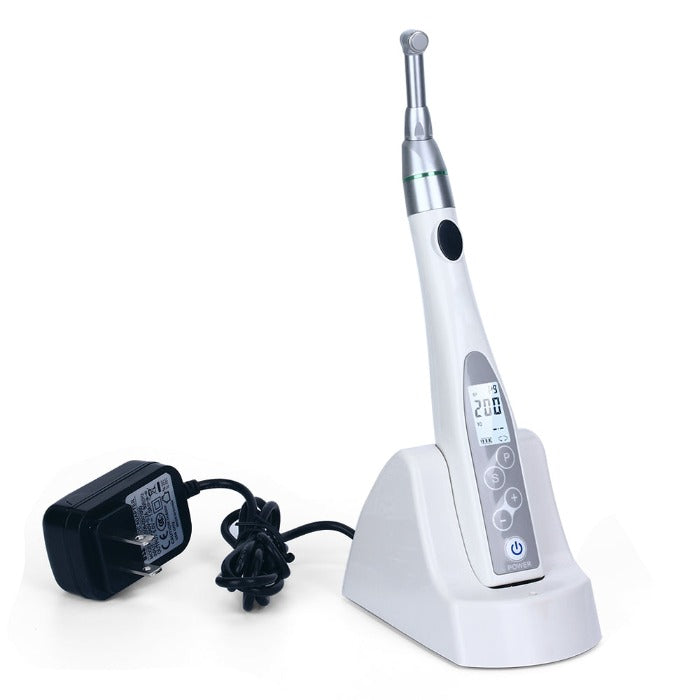

Endo Motor ENDO-2 Overview |
Auto-Reverse mode instructions:
|
Ration | RPM | Torque(N.cm) |
1:1 | 2000 - 9000 | ---- |
10:1 | 200 - 900 | 0.2 - 2.2 |
16:1 | 140 - 550 | 0.3 - 3.0 |
20:1 | 100-450 | 0.4 – 4.0 |
Endo Motor ENDO-2 Specifications |
Main Engine Voltage: | 3.7V |
Battery Capacity: | 1050mAh |
Charger Input Voltage: |
AC110-220V,50-60Hz |
Charger Onput Voltage: |
5V |
Output Current: |
1000mA |

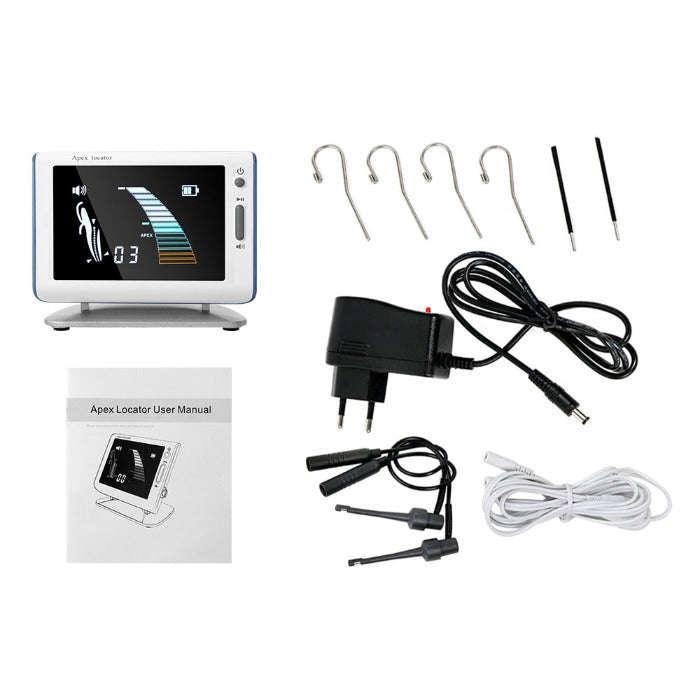

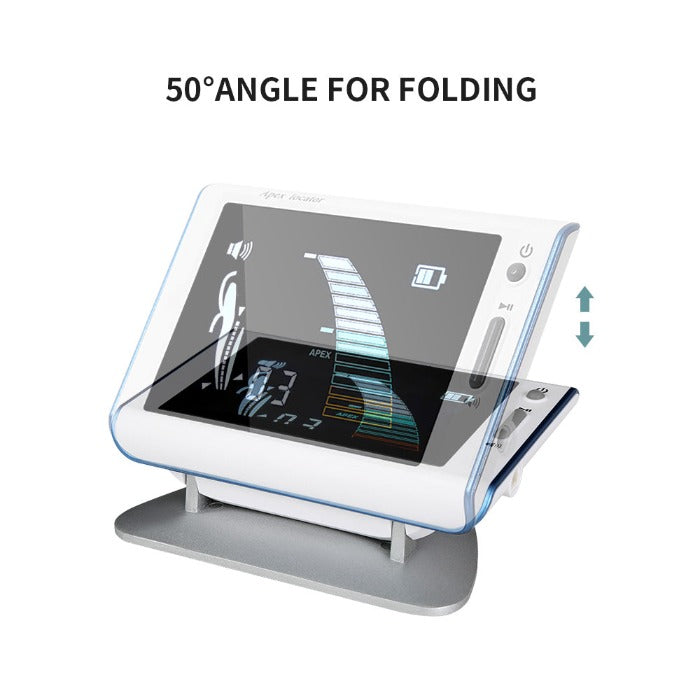

Apex Locator Overview |
|
Apex Locator Specifications |
Power: | 3.7V/750mAh |
Power Consumption: | ≤0.5W |
Main Unit Weight: | 446g |
Dimensions: | 131mm×75mm×105mm |
Screen: | 4.5“LCD |
