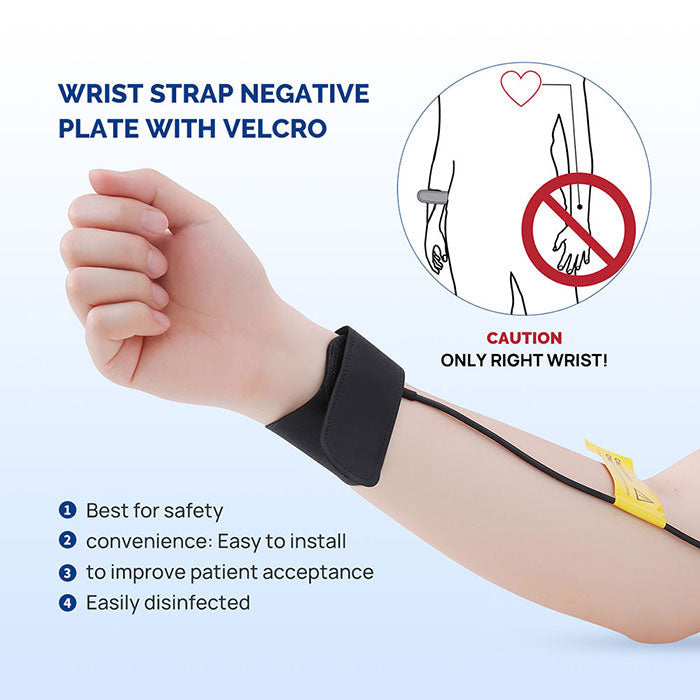

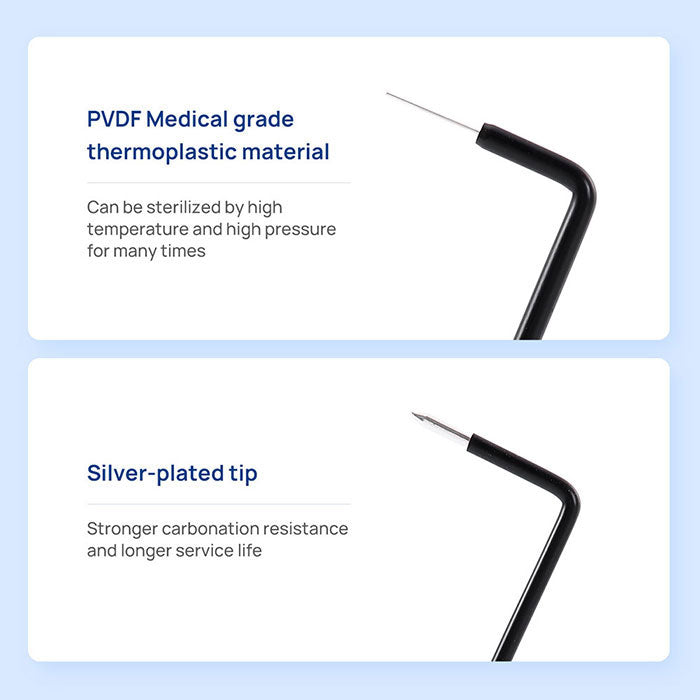

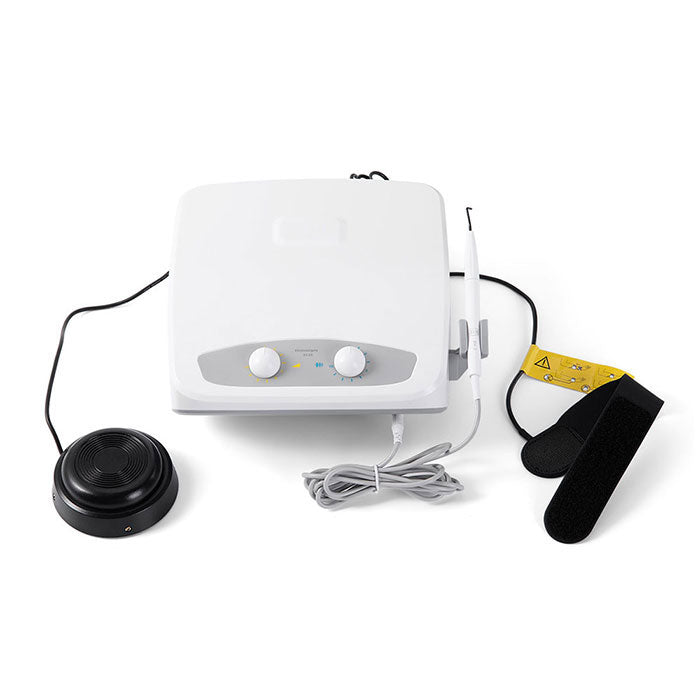

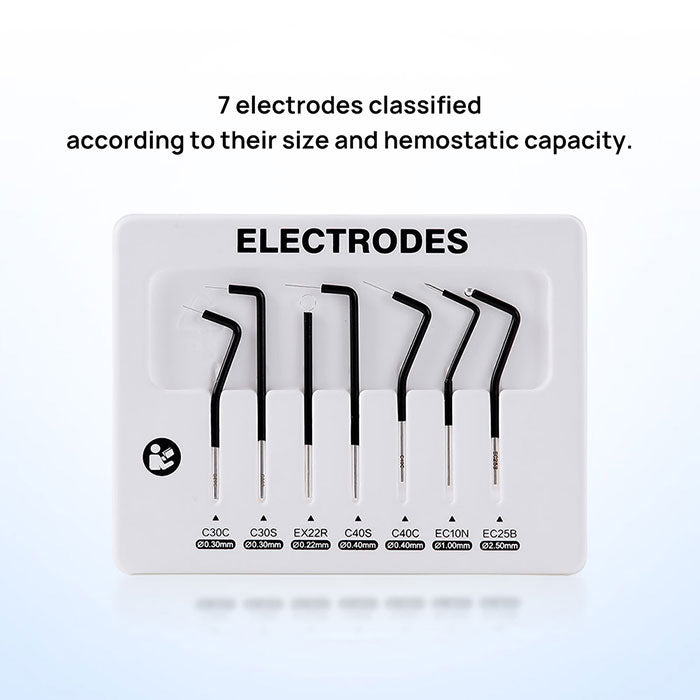

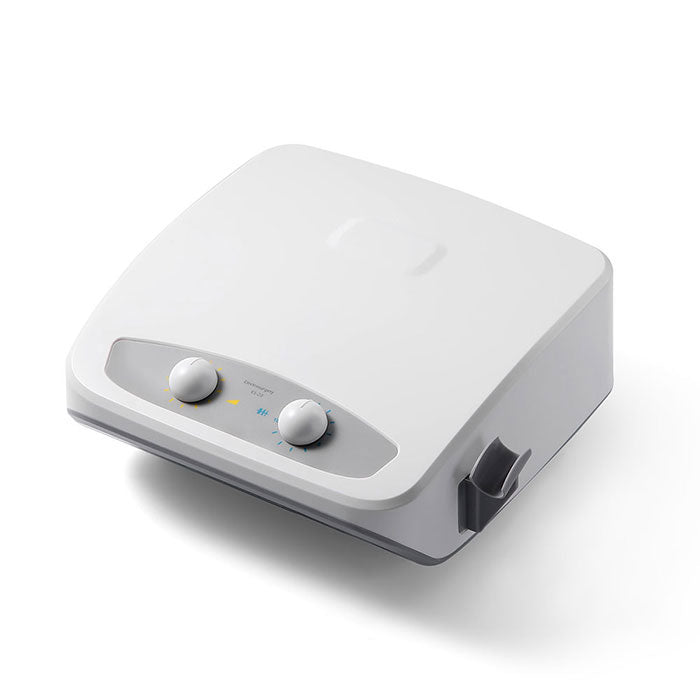

Dental Electrosurgical Unit Cutting Unit with 7 Electrodes NIB. 30 watts is sufficient to perform all dental incision and coagulation procedures providing greater safety. Wrist strap negative plate with Velcro. 7 electrodes classified. PVDF Medical grade thermoplastic material.Can be sterilized by high temperature and high pressure for many times. Silver-plated tip.Stronger carbonation resistance and longer service life.
Overview |
|
Specifications |
Supply voltage: | 115VAC/230VAC |
Supply frequency: | 50Hz/60Hz |
Power consumption: | 170VA to 230VA |
Power output: | 30W |
Characteristic impedance: | 600Ω |
Output impedance range: | 100Ω to 2000Ω |
Output voltage: | 650V PP-P=10, W=1 |
Output frequency : | 1.2MHz±0.2MHz |
Packing List |
Main Unit: | 1 |
Electrode Holder: | 1 |
Wired Footswitch: | 1 |
Power Cable: | 1 |
Electrode Holder Silicone Pad: | 2 |
Bracelet (Neutral Electrode): | 1 |
Electrodes: | 7 |
User Manual: | 1 |
Warranty Card: | 1 |
Packing List: | 1 |
Quick Guide: | 1 |
