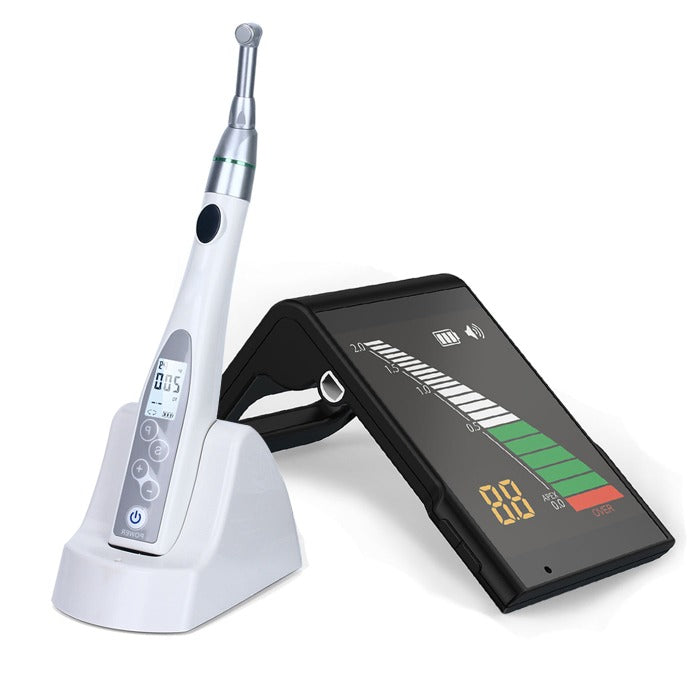

Dental Endo Motor 16:1 Mini Root Canal Handpiece + Electro Apex Locator Apex X
ENDO-2
- 9 program settings can be memorized
- Auto-reverse mode makes operation easier
- Cordless handpiece delivers freedom of movement
- Non-contact type charge design, more safe and reliable
- High capacity lithium-ion battery provides stable and prolonged usage
- With 16:1 electric contra angle(1:1/10:1/16:1/20:1 contra angle can be compatible for wide clinical application)
- Offers quick and easy coupling
- Automatic power off

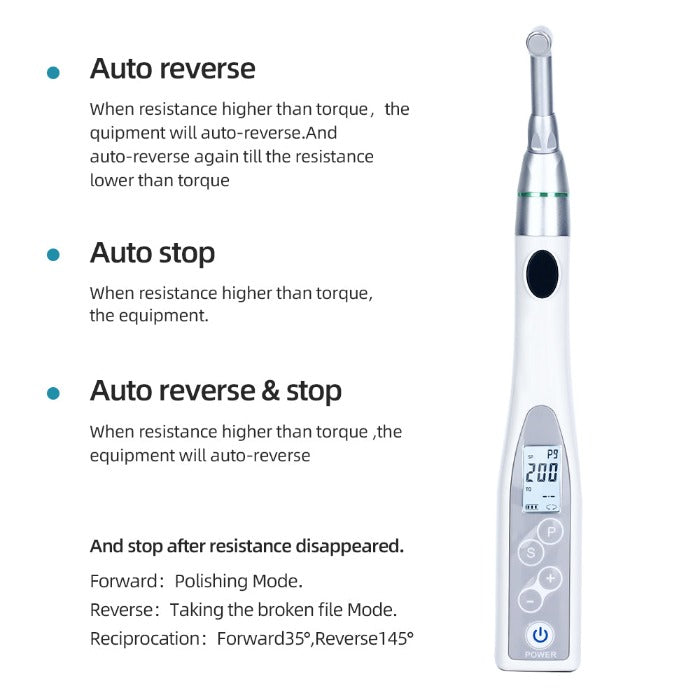

Auto-Reverse mode instructions:
- Auto reverse (When resistance higher than torque, the equipment will auto-reverse. Auto-reverse again till the resistance lower than torque)
- Auto stop (When resistance higher than torque, the equipment will stop working)
- Auto reverse & stop (When resistance higher than torque, the equipment will auto-reverse.)
- And stop after resistance disappeared.
- Forward：Polishing Mode.
- Reverse：Taking the broken file Mode.
- Reciprocation：Forward 35°, Reverse 145°
| Ration | RPM | Torque(N.cm) |
| 1:1 | 2000 - 9000 | ---- |
| 10:1 | 200 - 900 | 0.2 - 2.2 |
| 16:1 | 140 - 550 | 0.3 - 3.0 |
| 20:1 | 100-450 | 0.4 – 4.0 |
| Product Details |
| Main Engine Voltage: | 3.7V |
| Battery Capacity: | 1050mAh |
|
Charger Input Voltage: |
AC110-220V,50-60Hz |
|
Charger Onput Voltage: |
5V |
|
Output Current: |
1000mA |
Apex Locator Apex X
- Advanced multi-frequency network technology of apex location and automatic calibrating ensures the measurements are accurate.
- The File clip, Lip hook and Touch probe can be sterilized by autoclaved sterilizer.
- The buzzer will alert when the file is less than 2mm closed to the apex.
- Compact size and stable design allows for excellent flexibility during procedures.
- It is not necessary to set the device on zero before measuring each individual canal.
- Buzzer alert: The buzzer will alert when the file is less than 2mm closed to the apex.
Operation condition:
- Environment temperature: 0～40℃
- Relative humidity: 10～85%RH.
- Atmosphere pressure: 60kPa～106kPa
| Product Details |
| Model: | APEX - X |
| Dimensions: | 4.33" (Length) ×2.64" (Width) × 2.05" (Height) |
| Weight: | 3.28 oz |
| Battery: | 3.7V/750mAh |
| Adapter: | 5V/1A |
| Consumption Power: | ≤0.5W |
| Screen: | 3.2' LCD |

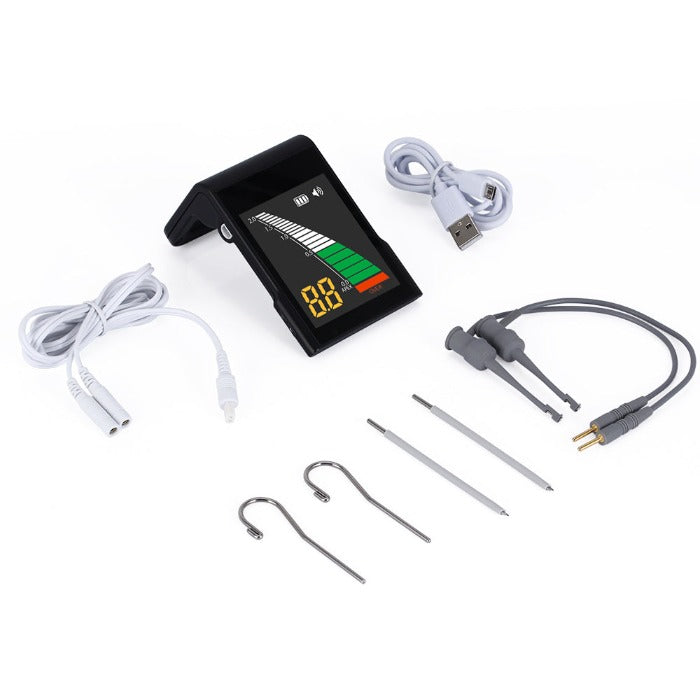

| Packing List |
| Main Device Apex X: | 1 |
| Lip Hook: | 2 |
| File Clip: | 2 |
| Touch Probe : | 2 |
| USB Adapter: | 1 |
| Measuring Wire: | 1 |
| English Manual: | 1 |
