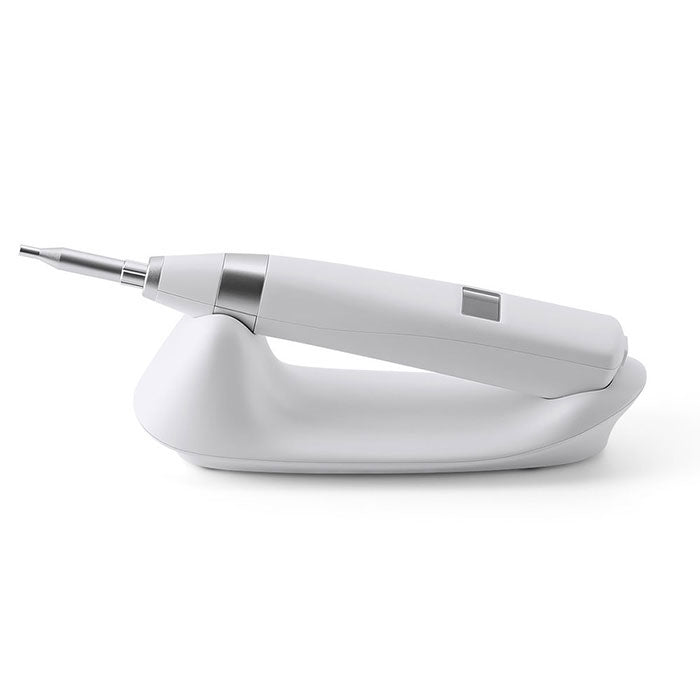

Dental lmplant Stability Device Measuring. It is a stability measuring device that uses tapping method, which measures the time of the Tapping Rod of the device contacting the implant for dentistry and dental implantology or oral cavity, or abutment, to measure the stability of the placed implant. Convenient usage due to small and light design. Easy to use due to simple controlling method. Fast measuring time less than 3 seconds. Safe measurement due to slight tapping technique and auto safety system (tapping stops after tapping twice when Osseointegration is unstable, otherwise taps up to 6 times.). Available to check possibility of implant failure at in earlier stages.

Note: Maintain the contact angle within the range of 0° ~ 30°, the measured value is more accurate when the degree between the healing abutment and the Front Guide is closer to perpendicular.

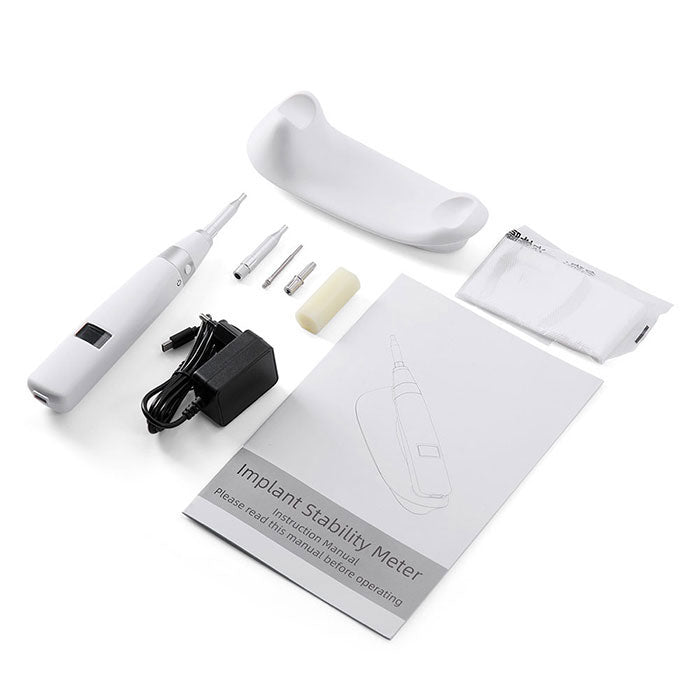

Product manual download

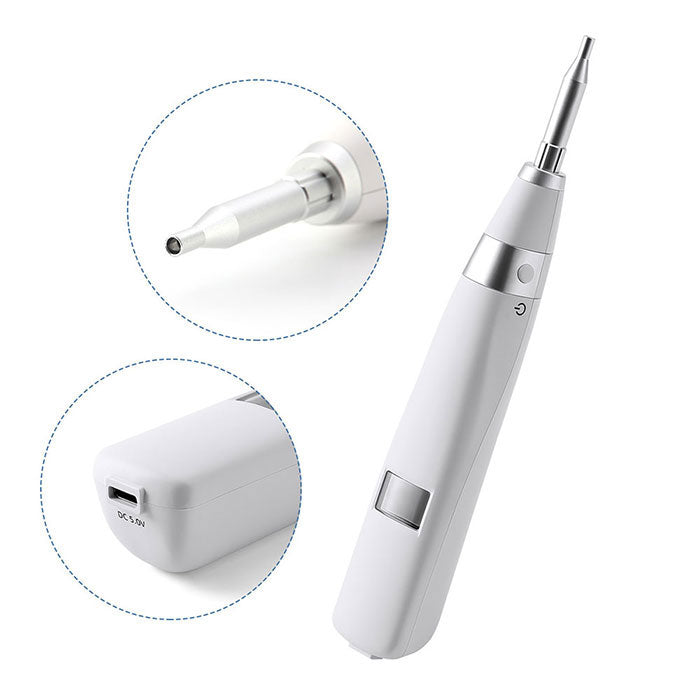

Overview

Used to measure implant stability, continuous monitoring of implant stability can help determine bone resorption and guide the selection of the best repair timing. The impact force is relatively small, approximately equal to 0.9N. Simple and fast measurement of accurate values.

Sterilization

The surface of the host shell should be wiped with medical alcohol ，and should not be disinfected under high temperature and pressure. Front guide,tapping road, allen wrench can be cleaned and then disinfected under high temperature and pressure. Do not use disinfectant spray to prevent the disinfectant from penetrating into the product Do not use engine oil or lubricants to lubricate the front guide and impact sensitive parts of the striking road.

Measuring Process

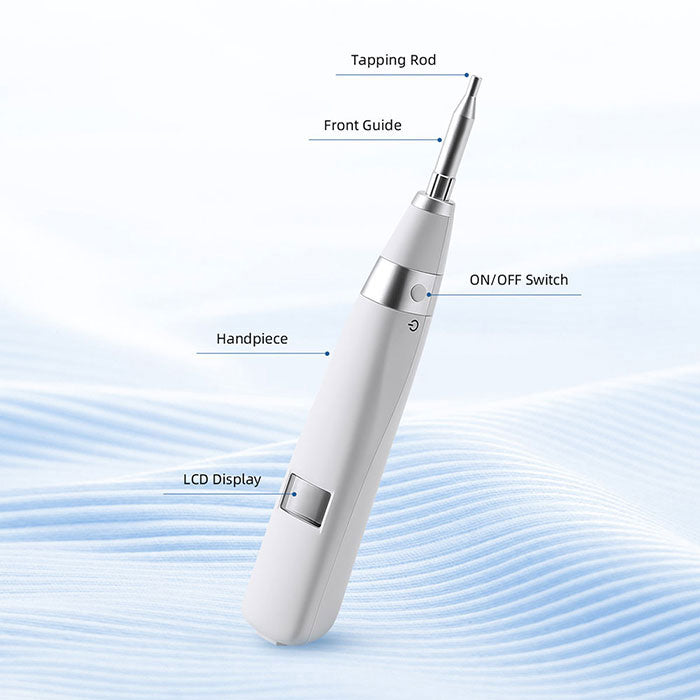

Take out the disposable seeve and put it on the handpiece before use Turn the power on by pressing the ON/OFF switch. Carefully position the tip of the Tapping Rod to the upper edge of the healing abutment while being cautious not to push the abutment. Maintain the contact angle within the range of 0° ~ 30° to upward When the Tapping Rod of the handpiece is located 90 degree from the side part of the top of the healing abutment and the ON/OFF switch is pressed once, the tapping motion starts after 0.5 second. The measured value is more accurate when the degree between the healing abutment and the Front Guide is closer to perpendicular. Check the numbers displayed on the LCD screen of the device. Due to the different bone widths in different directions of the implant, the measurement data will be biased. Try to measure the stability value from multiple angles to get a reasonable value.

Note

If the contact angle is off the range (0° ~ 30° . upward from the surface), an alert sound will be on and the LCD screen displays "TOO LOW" or"TOO HIGH", the handpiece will not operate. In this case, tilt the deviceuntil the contact angle is back in the range, and then, try measuring again. Measurement error may occur if the tip of the Front Guide applies too much force to the healing abutment or is too far away from the healingabutment during measurement. Empty tapping-motion results in no reading or obvious data errors.

Checking Measured Value (iST scale)

Measured value is similar to ISQ scale: -above 60: bridge recommended. -above 70: single case loading possible. A range of measured value is displayed as a number between 01 to 99. Color of the number appears as Red (1 to 59), Yellow (60 to 64), Green(65 to 99). Green light below the LCD Display is the status bar. Lower the measured value (iST scale), greater the implant mobility (weaker the degree of osseointegration).

Sterilization

The surface of the host shell should be wiped with medical alcohol ，and should not be disinfected under high temperature and pressure. Front guide,tapping road, allen wrench can be cleaned and then disinfected under high temperature and pressure. Do not use disinfectant spray to prevent the disinfectant from penetrating into the product Do not use engine oil or lubricants to lubricate the front guide and impact sensitive parts of the striking road.

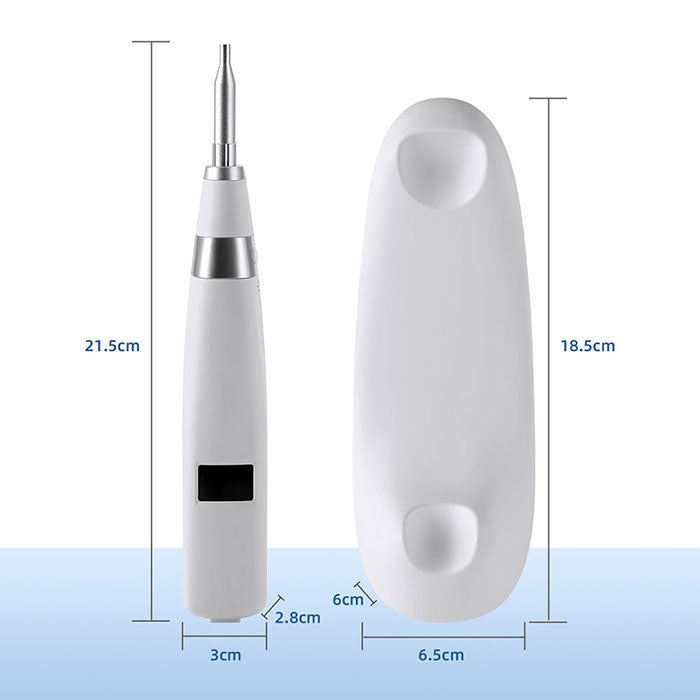

Specifications

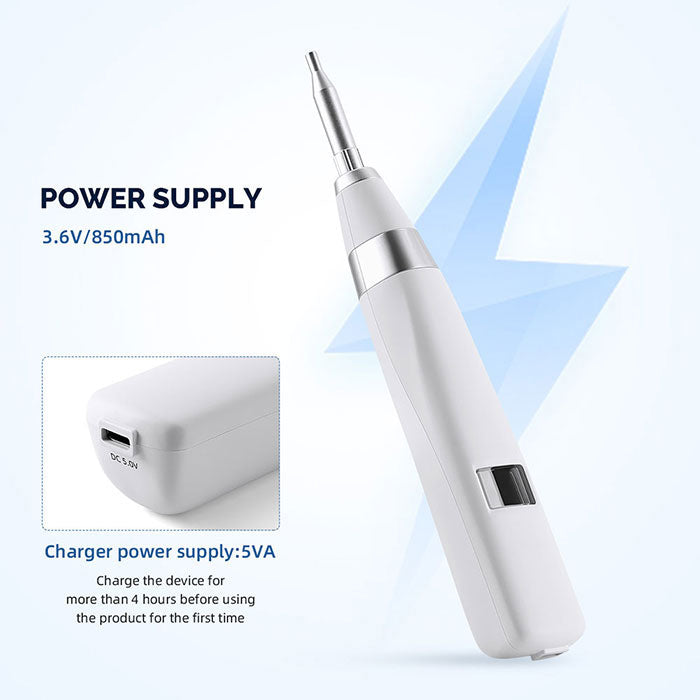

Battery Capacity:	850mAh

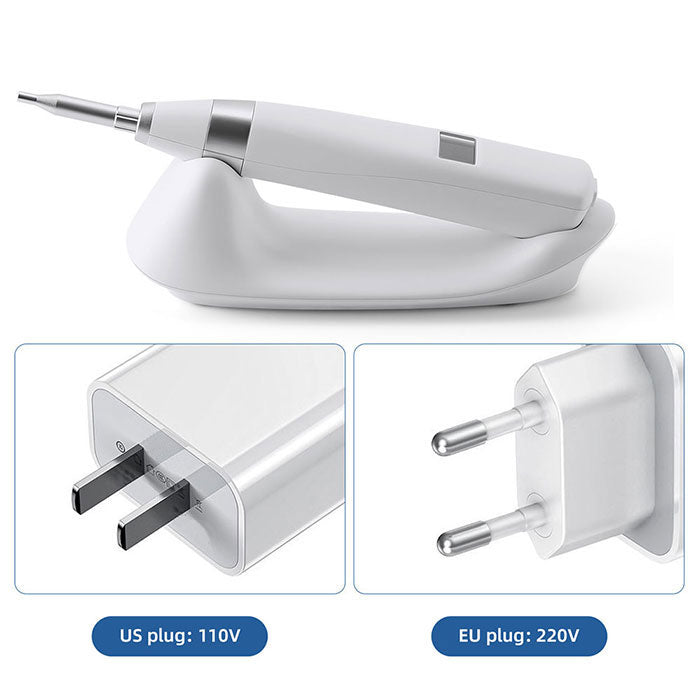

lnput:	100-240V~50/60Hz
Output:	5V 1A
Environment Temperature:	+5℃ to +40℃
Relative Humidity:	10%~93%
Atmosphere Pressure:	70kPa to106kPa
Operation Model:	Continuous Operation

Performance

Accuracy:	Display value ± 3
Tapping Speed:	0.5 sec. / 1 time
Tapping Strength:	≤1.0 N to 1.3N
Number of Tapping:	Taps 2~4 times until the measured value of 1~59. After 60~ 99, the device taps 6 times in order to measure the stability.
