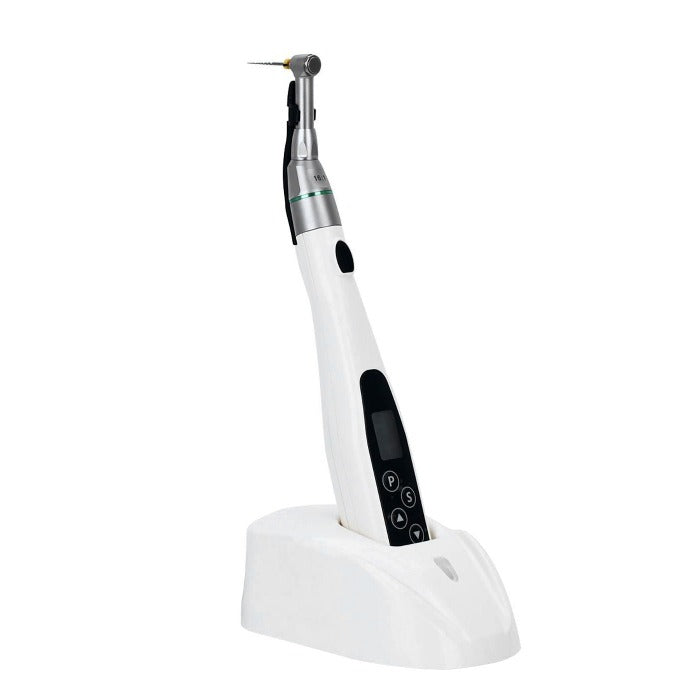

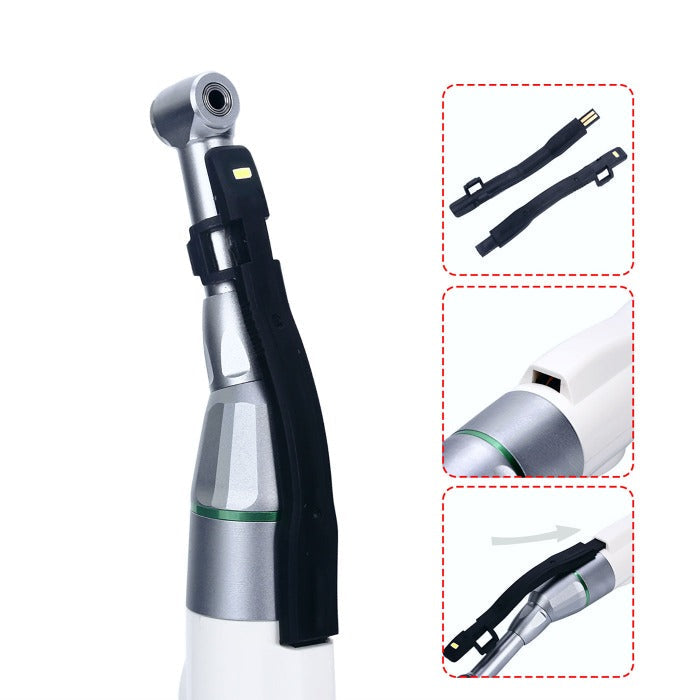

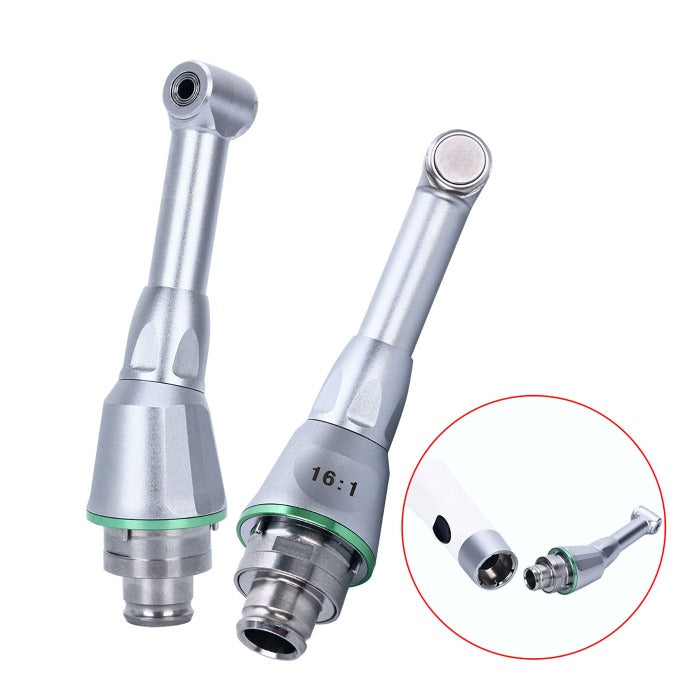

Dental Mini Wireless LED Endo Motor, 16:1 Reduction Contra Angle, 6 Kinds of Procedures(Memory set) For Selection, With High Brightness LED Lamp.
Product manual download
| Overview |
|
| Ratio | RPM | Torque(N.cm) |
| 16:1 | 150-500 | 0.6 – 4.0 |

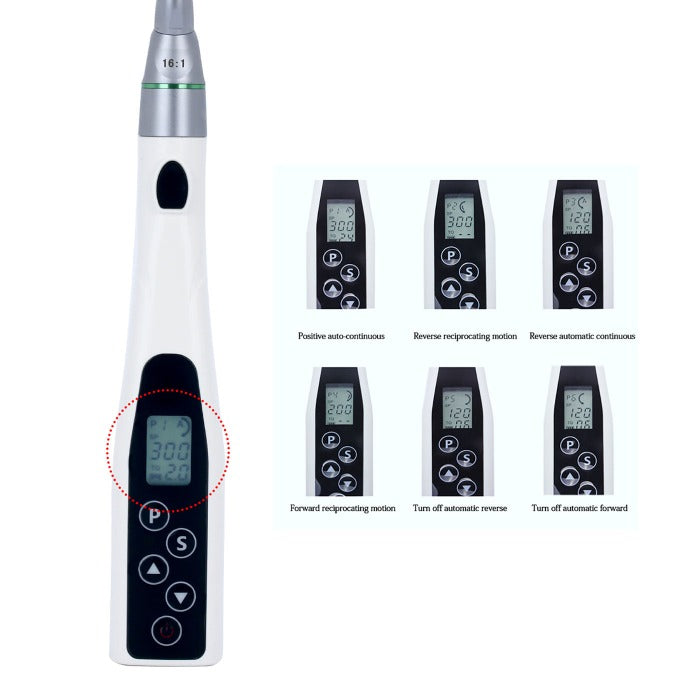

| Six Kinds Work Procedures |
| P1: | Positive 360°automatic movement,forward rotation plus reversal torque,then remove the torque to restore forward. |
| P2: | Reverse reciprocating motion system,reverse 150°,forward 30°(approximation) |
|
P3: |
Reverse 360°automatic movement,reverse rotation plus torque forward,then remove the torque to restore the reversal |
|
P4: |
Forward reciprocating motion system,forward 150°,reverse 30°(approximation) |
|
P5: |
Positive 360°,when encounter torque,please stop.Using hand file to reciprocate Contra-angle Handpiece or Anti edge file to remove broken needle. |
|
P6: |
Reverse 360°,when encounter torque,please stop.Using cutting edge file to remove broken needle. |
| Specifications |
| Main Engine Voltage: | 3.7Vdc |
| Battery Capacity: | 800mAh |
|
Charger Input Voltage: |
AC110-220V,60/60Hz |
|
Charger Output Voltage: |
5Vdc |
|
Intput Current: |
1A |

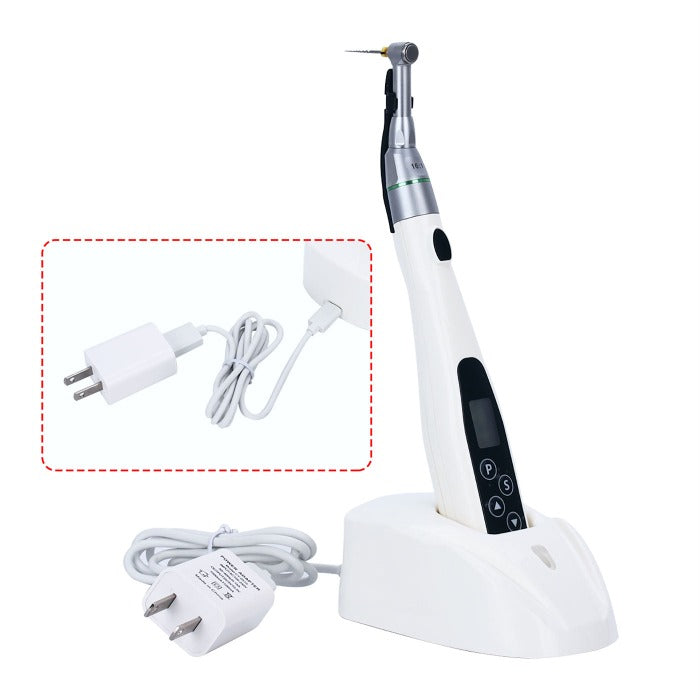

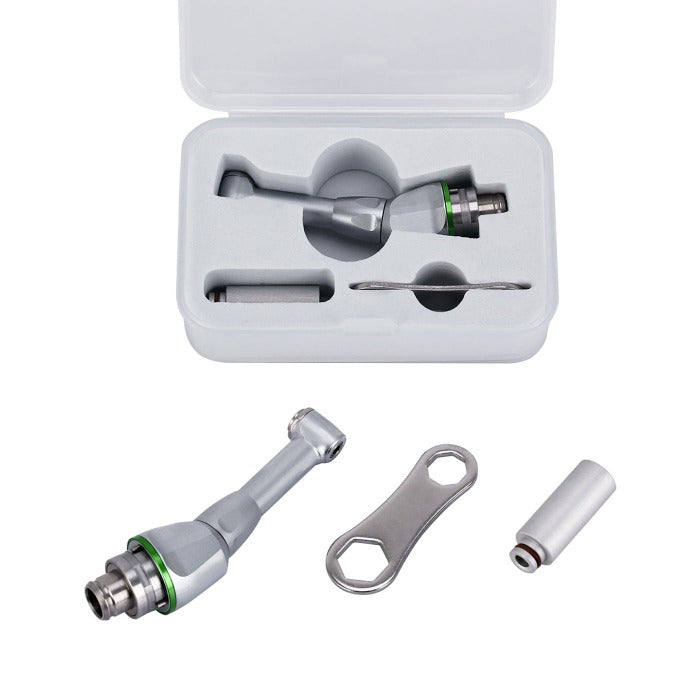

| Packing List |
| The Host : | 1 |
| Charging Dock: | 1 |
|
Lamp Holder : |
2 |
|
Power Adapter : |
1 |
|
Motor Cover : |
1 |
| Product Specification: |
1 |
|
Product Certificate: |
1 |
| Product Details |
| Main Engine Voltage: | 3.7V |
| Battery Capacity: | 1050mAh |
|
Charger Input Voltage: |
AC110-220V,50-60Hz |
|
Charger Onput Voltage: |
5V |
|
Output Current: |
1000mA |
